BELL Universal LED Dimmer Module Max 100W
for Same Day Dispatch

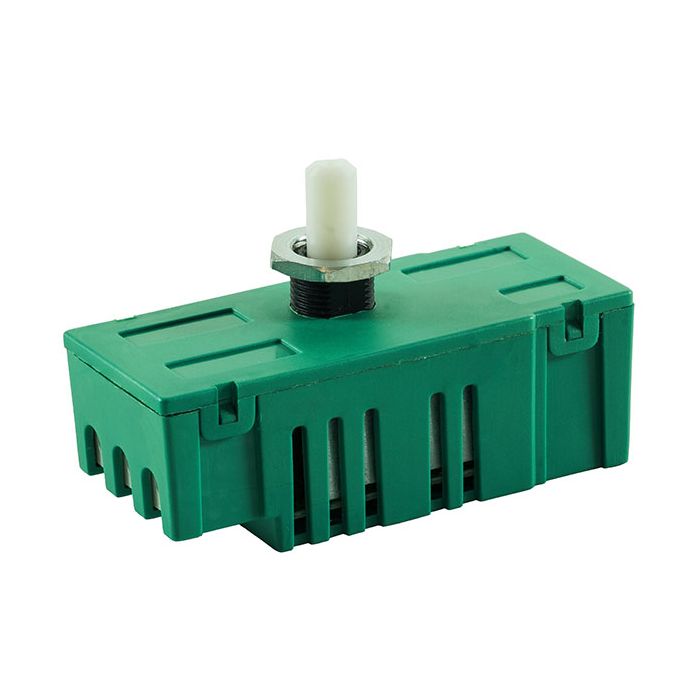

Bell 10801 Universal LED Microprocessor Dimmer Module 100W
Universal LED Microprocessor Controlled Trailing Edge Dimmer Module
Ideal for replacing existing backplate dimmer modules when retro-fitting LED lamps or fittings. Suitable for dimming LED/ CFL/ Halogen and Incandescent.
Smooth flicker free silent buzz free dimming an no set up required.
Features
- Automatic self-adjusting dimmer module
- No need to set or adjust trim switch
- Completely silent dimming
- Smooth flicker-free dimming
- Wide dimming ranging from 100% to 10%
- Compatible with most lamps and fittings in the market
- Automated soft start/ stop control
- 5W - 100W LED lamps (10 lamps maximum)
- 10W - 250W Including Incandescent, Halogen and CFL lamps
Specification
Resistive Load
- GLS - Min 10W ~ max 250W
- Mains Voltage Halogen - Min 10W ~ max 250W
Inductive Load
- LV Halogen with dimmable electronic transformer Min 10W ~ Max 100W
LED Load
- LED Dimmable - Min 5W ~ Max 100W - 10 Lamps Maximum
Bell 10801 Universal LED Microprocessor Dimmer Module 100W
Universal LED Microprocessor Controlled Trailing Edge Dimmer Module
Ideal for replacing existing backplate dimmer modules when retro-fitting LED lamps or fittings. Suitable for dimming LED/ CFL/ Halogen and Incandescent.
Smooth flicker free silent buzz free dimming an no set up required.
Features
- Automatic self-adjusting dimmer module
- No need to set or adjust trim switch
- Completely silent dimming
- Smooth flicker-free dimming
- Wide dimming ranging from 100% to 10%
- Compatible with most lamps and fittings in the market
- Automated soft start/ stop control
- 5W - 100W LED lamps (10 lamps maximum)
- 10W - 250W Including Incandescent, Halogen and CFL lamps
Specification
Resistive Load
- GLS - Min 10W ~ max 250W
- Mains Voltage Halogen - Min 10W ~ max 250W
Inductive Load
- LV Halogen with dimmable electronic transformer Min 10W ~ Max 100W
LED Load
- LED Dimmable - Min 5W ~ Max 100W - 10 Lamps Maximum
Brand | Bell |
---|---|
Product Colour/Finish | GREEN |
No. of Gangs | 1 |
Switch Operation | Dimming Knob |
Product Code (EAN,GTIN etc) | 5013588108018 |
