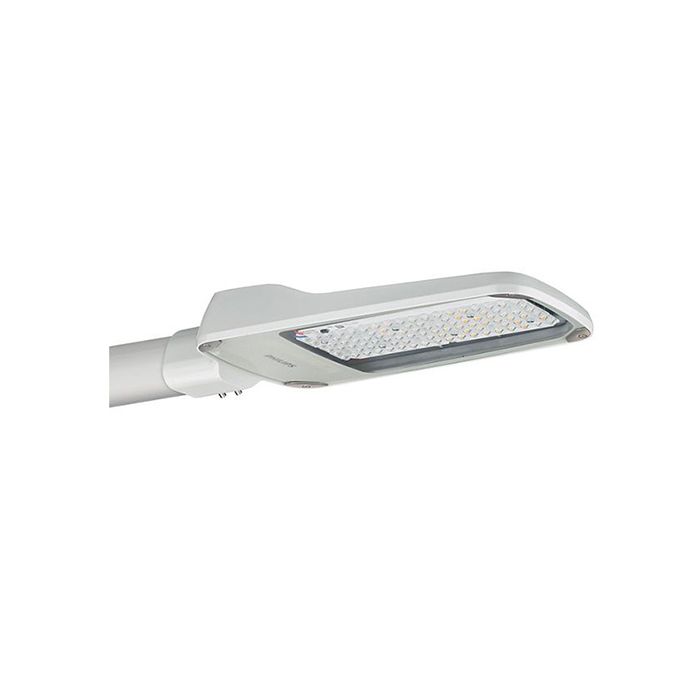

PHILIPS CORELINE MALAGA 83W 4000K LED STREETLIGHT (SIDE ENTRY)

PHILIPS CORELINE MALAGA 83W 4000K LED STREETLIGHT (SIDE ENTRY)

BRP102 LED110/740 DM 42-60A

CoreLine Malaga LED:

Simply Efficient

The CoreLine Malaga LED family consists of two sizes and uses a Philips standardised design LED engine as the light source and a Philips Xitanium fixed output outdoor driver. Lightsave stocks the medium beam (DM) but the wide beam (DW) is available on request please contact the sales office.

Quality you can rely on. At the same time, the investment in a CoreLine Malaga LED luminaire is in many cases on the same level as an old SON-T luminaire including the first lamp. As the LED light engine in CoreLine Malaga LED will last for the lifetime of the luminaire, just by saving on the multiple lamp replacements needed with SON-T, your investment will be returned. Ease of installation is assured through the extended gland feature; the luminaire does not need to be opened to connect the power cable. At the same time, the flat glass cover can be removed to allow access to the driver for maintenance, if required.

Adding up the functions and features truly make the choice for CoreLine Malaga LED an easy decision. As a member of the CoreLine family, Malaga LED is easy to install and available from Lightsave. The CoreLine Malaga LED has been designed as efficiently as possible, with the same performance as the SON-T 50, 70, 100 and 150 W luminaires it replaces; provide the right amount of light in the right place. The medium beam (DM) optic delivers an efficient distribution onto the road. The combination results in interesting energy savings which reduce operating costs significantly. 50% energy reduction is realistically possible.

Benefits

• Reliable quality: aluminium die-cast housing and tempered flat glass.
• Maintainable, driver can be replaced.
• IP65 and IK08 provide durable operation.
• Ready to be paired with lighting control and software applications, by being equipped with the Philips SR (System Ready) socket
• Equipped with a service tag, a QR-based identification system that makes each luminaire uniquely identifiable and provides maintenance, installation, and spare part information.
• Easy return on investment. The investment in the luminaire, by saving lamp changes required for SON-T lamp luminaires, is already re-paid. On top, realistic energy savings of 50% reduce the yearly running costs of the installation.

Features

• A direct, one-for-one replacement for SON-T lamps in road, street, and residential applications. A purpose-built, dedicated to LED, robust design including the Philips standardised LED light platform and a fixed output Philips Xitanium outdoor driver. Easy installation through the extended gland. No need to open the luminaire.100,000hrs lifetime L70 (or 75,000 hours L80) at Tq +25 ºC).
• 5-year warranty

Application

• General outdoor; road, street, and residential areas.
• Industrial areas.
• Car parks.
• Public transport, such as buses or bus stops
